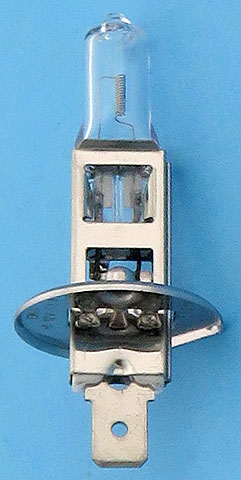

01003, H1 12V 55W
H1 12V 55W
Your lamp may look slightly different!

$2.49 Each
Box of 10 $16.40 Each

Lamps ordered will be shipped the next day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our online order form, secure shopping cart below or call 800-692-3051.


Click below to order using our secure shopping cart.

01003

Box of 10 01003

Wattage: 55W, 55 Watt Watts
Amperage: 4.58A, 4.58 Amps
Voltage: 12V, 12 Volt Volts, Test Voltage 13.2V
Base: P14.5s
Glass: T3.5
Filament: C-8
Average Life: 225 Hours
Maximum Overall Length: MOL 2.65"/67.3mm
Maximum Overall Diameter: MOD .33"/8.4mm
Candlepower: CBCP, MSCP 123
Lumens: 1450
Gas: Halogen
DOT Approved

h1 12v 55wH1 Graphic
01003 Measurements55 Watt

Alternate Part Numbers: 64150, 37R-00630, 12258/99 Philips, E1, M1, GEH112V55W, SAE, W3, 97, W5-1 98, Dr. G. Fischer Autolicht 1255, Artemide Tizio, 40124, Hella, 31393, HL78105, JA12V-55W/H1, 1000790, 78105, 448, R448, EL448BL50X2, 48320, 48330, 48520, 48530, 48630

Aerodynamic Beacon M/H12/x

Alfa Romeo GT Nov 2003 Onwards Full Beam

Audi S6-Some Models

Code 3 Inc.
420 Beacon Light Bar
Magnetic Light Bar Mounted on Top of a Vehicle
Code 3 420 Beacon Light Bar Assembly

Daystar
1000 Series

Dorman
Trafibeacon

Firebeam
FB3SM

Mini Beacon M/H12/O

Sirius
NS-900B 9" Driving Lamp
NS-900C 9" Driving Lamp

Whelen
Guardian Rotator Mini Lightbar

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
