3S6/5DC-120V Lamp
3S6DC 120V 3W 3S6/5DC-120V

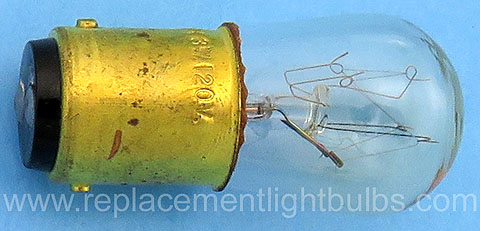

Larger than actual size, approximately 45.6mm long.
Your lamp may look slightly different!

$1.00 Each
Box of 10 $6.30
Lot of 100 $42.00

Lamps ordered will be shipped the next day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart below or call 800-692-3051.



Click below to order using our secure shopping cart.

3S6/5DC-120V Miniature

Box of 10 3S6/5DC-120V Miniature Lamps

Lot of 100 3S6/5DC-120V Miniature Lamps


Voltage: 120V, 120 Volt Volts
Wattage: 3W, 3 Watt
Amperage: .025A
Filament: C-7A
Maximum Overall Length: 1.82"/46.2mm
Maximum Overall Diameter: .75"/19.1mm
Average Rated Life: 3000 Hours
Bulb: S-6, Clear Glass, S6
Base: BA15d DC Double Contact Bayonet, 15mm Diameter
MSCP .9

Alternate Part Numbers: 3S6/5DC-120V, 40556, 3S6DC

Equipment That Uses This Lamp


Empire Troubador series of turntables 598, 598 Series II and 598 Series III.

Sol-Rex H56D

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
