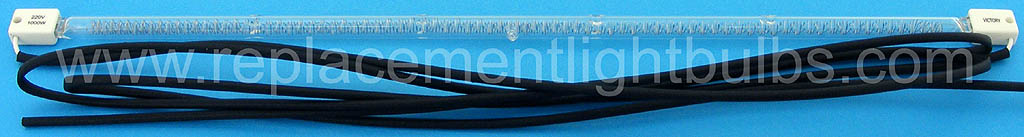

Victory 64221021 1000W 220V SK15 Quartz Heater Lamp
Victory 64221021 1000W 220V SK15 Quartz Heater Lamp Replacement Light Bulb

Overall Length 17.75" or 450mm

38 In Stock - 180 On Order ETA January 2024

Victory $23.25 Each

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 1000W, 1000 Watt, Watts
Voltage: 220V, 220 Volt, Volts
Base: SK15 Double Insulated 51" Leads
Glass: T3 Clear, 10mm Diameter
Maximum Overall Length: MOL 17.75" or 450mm
Heated Length: 15"
Color Temperature: 1800°K, 1800K
Burn Position: Horizontal
Average Rated Life: 5000 Hours
Filament: NDA Special Filament for Instant Heat
Infrared Medium Wave Quartz Heat Lamp
Flash Cure Infra-Red

64231024 Graphic

A = 450±2mm
B = 327mm Nominal
C = 1300±5mm
E = 15.1mm
F = 10.5mm±5mm
G = 385±5mm
H = 5mm Maximum

Typical Use: Drying Water Based Inks, Offset Litho • Wood Treatment, Wallpaper • Shrink Wrap, Blow Moulding • Thermoforming • Screen Printing on Textiles

Alternate Part Number: QH1000W-220V-SK15, RoHS, CE, 220V/1000W, Anatol 23305, 4030048

Anatol Rapid Wave

Anatol Rapid Wave Quartz Flash 16X16 Curing Area

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
