6430 Lamp

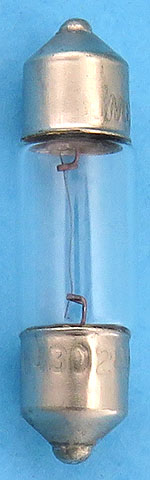

6430 24V 3W
Larger than actual size, maximum overall length 29mm.
Your lamp may look slightly different!

$1.00 Each
Box of 10 $7.50
Lot of 100 $52.00

Lamps ordered will be shipped the next day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart below or call 800-692-3051.



Click below to order using our secure shopping cart.

6430 Miniature

Box of 10 6430 Miniature Lamps

Lot of 100 6430 Miniature Lamps


Voltage: 24V, 24 Volt Volts
Wattage: 3W, 3 Watt
Filament: C-8
Maximum Overall Length: 1.10"/27.94mm
Maximum Overall Diameter: .28"/7.1mm
Average Rated Life: 200 Hours
Bulb: T-2 1/4
Base: Festoon Cap
Light Center Length: .72"/18.3mm
Amperage: .125A, 125mA
MSCP: 1.2

Alternate Part Numbers:  7-8, 8x31,  LP23,  29mmx8mm, 29x8, 1.15"x.31" SV7-8, 591227036, SV8,5-8, VG140, A2023, 13842, A6430, 6340, 2315, AL23, Sockel SV 7, 39414
Typical Use: Automotive

Equipment That Uses This Lamp


THD
Hot Plate Antennuator


Cross reference information is designed to help you find the correct lamp  for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
