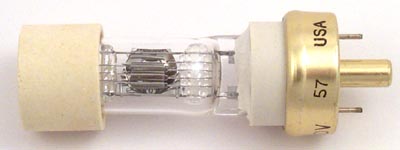

CBA 120V 500W Slide Projector Light Bulb Replacement Lamp
CBA 120V 500W Slide Projector Replacement Lamp, Light Bulb

Discontinued - No Remaining Stock - Recommended Replacement - CBF - Possible Replacements DEL, DEK

The CBF and DEL are shorter life versions of the lamp. The DEK is the incandescent version of the lamp. Most applications can use any of the replacements. Some applications, like the cube projector, does not have room for the DEL or DEK so can only use he CBF when the CBA is no longer available.

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Voltage: 120V
Wattage: 500W
Amperage: 4.17A
Base: G17T7, G17q 4 PIN BASE, The CBA has three of these pins and uses two of them.
Glass: T6, T-6, With Opaque Ceramic Cap, Top
Filament: C-13D, C13D with Proximity Reflector
Color Temperature: 3200°K
Average Life: 50 Hours
Maximum Overall Length: 3.62"
Maximum Overall Diameter: .77"
Light Center Length: 1.75"
Burn Position: HD Base Down To Horizontal

Typical Use: Slide Projection, Slide Projectors, Opaque Projection

Alternate Part Numbers: Sylvania 54580-1, 54580-0, FB-PR-T8, NSN 6240-00-471-5399, 6240004715399, GE 36117, Eiko 00690, Norelco

Substitute: More Light, Shorter Life, 10 Hours CBF
Possible Substitute: Similar Light, Shorter Life, 25 Hours DEK
Possible Substitute: Less Light, Longer Life, 200 Hours DAH

The DEK and DAH lamps are 1½ inches in diameter so they may not substitute for all applications such as the Bell & Howell Cube projector with limited space for the lamp.

Ansco

Anscorama 980, 960

Bell and Howell Company

977Q Slide Cube Projector
Slide Cube #981 981, 981Q
978Q
Bell and Howel Mod. 9770 Slidecube projetor
977
982Q (D)

Bosch

FDL Telecine

Eastman Kodak

CAROUSEL 550
CAROUSEL 550R
CAROUSEL 570
CAROUSEL AV-580
CAROUSEL 600, 600K, 600-K
CAROUSEL 700
CAROUSEL 800
CAROUSEL AV-900, AV900, LE
CAROUSEL RA-950, RA950
CAROUSEL 650
CAROUSEL 750, 760
CAROUSEL 850
CAROUSEL 600K
CAROUSEL 850K, 850-K
CAROUSEL 860
EKTAGRAPHIC AF
EKTAGRAPHIC Model B
CAROUSEL 760
EKTAGRAPHIC RA-960, RA960
EKTAGRAPHIC AF
EKTAGRAPHIC B

GAF (Ansco)

Anscorama 910, 940, 960
Anscorama 970, 980, 980Z

Jessup

16mm

Recordak

Motormatic MPG Microfilm Reader

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
