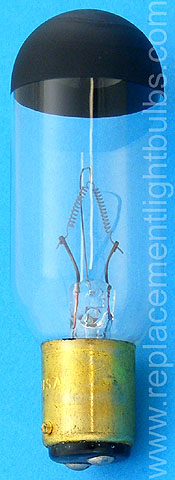

CDK/CEA/CEB 100W Lamp
CDK/CEA/CEB 100W Lamp, Replacement Light Bulb

*$10.00 Each

*Discontinued - 114 Remaining In Stock

Lamps ordered will be shipped the next business day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart above or call 336-882-2852 or 800-692-3051. Click to go to our Home Page, View Cart and to find Shipping Information.

Voltage: 115-125V, 120V
Wattage: 100W
Glass: T8, T-8 Clear with Painted Top or Clear Top
Base: BA15d Double Contact Bayonet, D. C. Bay
Filament: CC13, CC-13
Average Rated Life: 50 Hours
Maximum Overall Length: 3-1/8"
Light Center Length: 1-3/8"
Initial Lumens: 1,850
Color Temperature: 2975K, 2975°K
Burn Position: Base Down or Base Down to Horizontal
Typical Use: Slide Projector

Alternate Part Numbers: PH/100T8DC-120V, 100T8/DC, PXAG, CDK, CEA, CEB, GE 29244

Older projectors used a clear bulb with a metal cap. The painted, opaque top eliminates the need for the metal cap. Do not use the metal cap with the painted top lamps.

3M

525AF, 525-AF, 525/AF

Camera Optics Manufacturing Corporation (COC)

10-10 COC-MASTER, 1013-A, 1013A
88, 89 EXECUTIVE
COMMUNICATOR, EXAMINER, EXECUTIVE, MASTER, TRAVELER

F and B/Ceco, Inc.

35mm Viewer Professional

Kalart Victor

Craig 16mm Editing Projector

Sawyer, Sawyer's Incorporated

Slide Viewer 439-M1
View Master 100 Deluxe
View-Master-Lighted, View-Master-Projector-Viewer, View-Master-Talking
View-Master-300-Deluxe, View-Master-Junior, View-Master-Standard Viewmaster Standard
100 View-Master-Deluxe, Lighted, Projector-Viewer, Talking, 100 DeLuxe

Singer Corporation (Graflex)

1013-A, 1013A, Communicator

Viewlex

V2, V-2

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
