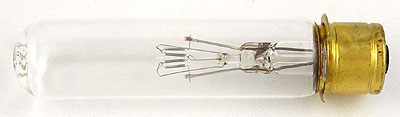

CTB Lamp
Your lamp may look slightly different!
$50.00 each
This discontinued lamp has limited availability
Please check stock here before
ordering.
Lamps ordered will be shipped the next day by USPS Priority
Mail or
UPS. Large orders may qualify for a discount and may not
qualify
for next day shipment. If you do not know what lamp you require or for
lamps not listed, email
your request or call 336-882-2854. To order, please use our online
order form, secure shopping cart below or call 800-692-3051.
Click below to order using our secure shopping
cart.
Voltage: 50V, 50 Volt, 50 Volts
Wattage: 250W, 250 Watt, 250 Watts
Base: P28s, Medium Pre-focus, Med. Pf.
Glass: T10, T-10, Clear
Average Life: 50 Hours
Burn Position: Burn Base Down
Filament: C-13 Fila
Maximum Overall Length: MOL 5.5"/140mm LCL 3.2"/80mm
Maximum Overall Diameter: MOD
1.25"/32mm
Alternate Part Numbers: PH/250T10/56-50V, CTB-50V, Mazda, For
E. K Co.
Equipment That Uses This Lamp
Kodascope Model B

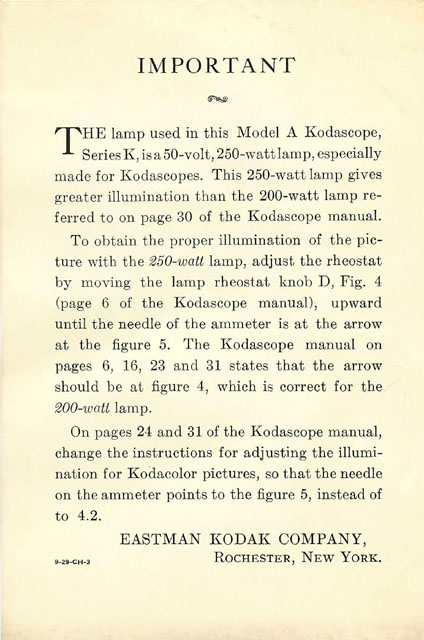

This lamp is used in Model A Kodascope Series K projectors that normally use the 200W lamp. The 250W lamp give greater illumination than the 200W lamp referred to on page 30 of the Kodascope manual. To obtain proper illumination of the picture with the 250 watt lamp, adjust the rheostat by moving the lamp rheostat knob D, Fig. 4 (page 6 of the Kodascope manual), upward until the needel of the ammeter is at the arrow at the figure 5. The Kodacope manual on pages 6, 16, 23 and 31 states that the arrow shoud be at figure 4, which is correct for the 200 watt lamp. On pages 24 and 31 of the Kodascope manual, change the instructions for adjusting the illumination for Kodacolor pictures, so that the needle on the ammeter points tot he figure 5 instead of to 4.2.
Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
