CWD 120V 300W Lamp

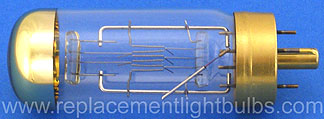

CWD 120V 300W Lamp, Replacement Projector Light Bulb

*$50.00 Each

*Discontinued - 78 Lamps Remaining In Stock

Lamps ordered will be shipped the next business day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart above or call 336-882-2852 or 800-692-3051. Click to go to our Home Page, View Cart and to find Shipping Information.

Voltage: 120V, 120 Volt, 120 Volts, 115-120V
Wattage: 300W, 300 Watt, 300 Watts
Base: G17q Four Pin, Tru-Focus
Glass: T10, T-10 Heat Resistant, Clear with Opaque Top-Can be any color but is commonly blue, black or gold.
Average Life: 25 Hours
Burn Position: Burn Base Down
Filament: C-13D with Reflector, C13D Tru-Focus
Maximum Overall Length: MOL 4"/102mm
Light Center Length: LCL 1.56"/39.7mm
Maximum Overall Diameter: MOD 1.25"/31.75mm
Color Temperture: 3200°K, 3200K

Typical Use: 8mm Projection, Slide, Film Strip

Alternate Part Numbers: For replacement, specify Sylvania Tru-Fous Projection Lamp, ASA Code CWD, 99-7126

Possible Substitute: CAL

For 230V Use CSF

Accura, Ltd.

Videocom 1000

Agfa-Gevaert, Inc.

Deamator M, Diamator-M
Superba 77A Model C for 2x2 Slides, Max Lamp 500W, Max Projector 550W


Superba Model 77, 30, 33
All 300 Series
Sprite 1, 20, 25, 28


300, Model 38

Bausch & Lomb

Balomatic 300


Midway 300, Deluxe 300

Micrometric Projector Lamp


Fresnel Photo Spot


Fresnel Photo Spot

Sawyer's Inc.

550A Serial #4136, 99-7126
500A, EE, ER, R, S, T
Crestline A, C,
DeLuxe, Special, R6, AF8, 501, 503, 505, 550A, -R, -ER, -RF, R1
Rotodisc, 500XR
XM Roto-Show 701


300 Auto Projector 898

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
