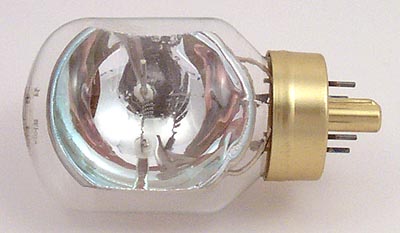

DLS/DLG/DHX 21.5V - 22V 150W Lamp

*Discontinued-No Remaining Stock

For possible replacement you can use the DKR lamp. These lamps have the same life and basic design but the DLS has a longer focal length. While they will interchange they are not the same.

Another possible substitute is the DCA lamp. The DCA is the same working distance but has a painted top. The DCA is 1/8" longer and 1/4" less in diameter.

Lamps ordered will be shipped the next business day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart above or call 336-882-2852 or 800-692-3051. Click to go to our Home Page, View Cart and to find Shipping Information.

Wattage: 150W, 150 Watt, 150 Watts
Voltage: 21.5V, 21.5 Volt, 21.5 Volts, 22V
Base: G17q Tru-Focus 4 Pin
Filament CC-6
Maximum Overall Length: MOL 3.5"/89mm
Maximum Overall Diameter: MOD 1.77"/45mm
Average Rated Life: 10 Hours
Bulb: T-14, T14
Light Center Length: LCL 1.56"/39.7mm
Color Temperature: 3250°K, 3250K
Typical Use: 8mm Movie Projection
Burning Position: BDTH, Base Down to Horizontal

Alternate Part Numbers: DHX, DLS, DLG, DLS/DLG/DHX, DLS/DHX, #32343, 155 WATT; Low Voltage; B & H; (DLG); B-10. Super Tru-Flector Lo-VOLT, 32343, Atlas KO A1/194, Use DLG Lamp Only, 21.5-150-31, 01450

Bell and Howell Company

Director Lumina 8mm Movie Projector
Super 363
Tronic 475
256E Autoload Cine Projector
Lumina II

DeJur Amsco Corp.

Duo Vista PJ-60
Remote Command DP-70
El Dorado II

Eastman Kodak Company

Analyst 8 Model A-75
Chevron Hi-Mat-A-35
Chevron Instamatic-M100 Sound
Chevron Showtime-A-35
Chevron Super A-25, A-35
Chevron 20 and 30
Chevron 8
Hi-Mat A-35


Videotronic (The Super 8 uses an ELZ lamp)

Osawa and Co.

Director-Super 363
Touch Tronic 475

Scherr Tumico

22-0338 Optical Comparitor

Sears Roebuck and Company

9280, 9282, 9288, 9289, 9299
Super Automatic 1910
Super Automatic 9202, 9203
CS-15401, 58492820
Model 584.92800
Model 584.92820
Model 584.92880
Model 584.92020


Sekonic 30HL, 30J
8mm Standard projector, Model 30 J



Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
