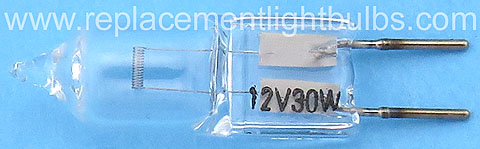

Ushio SM-20030 12V30W JC12V30WH20 12V 30W G6.35 Halogen Light Bulb
Ushio SM-20030 12V30W JC12V30WH20 12V 30W G6.35 Halogen Light Bulb

Discontinued - No Remaining Stock - Possible Substitutes JC12V30W-GY6.35, JC12V20WH20 and JC12V35WH20

Note: You can can go down in wattage but before going up in wattage make sure your equipment will support the higher wattage.

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 30W, 30 Watt Watts
Amperage: 2.5A
Voltage: 12V, 12 Volt Volts
Base: G6.35, BiPin
Glass: T3.5, T-3.5 Clear Tubular
Filament: C-6
Average Rated Life: 1,000 Hours
Lumens: 600
Color Temperature: 3000K, 3000°K
Color Rendering Index: CRI 100
Maximum Overall Length: 44mm
Maximum Overall Diameter: 11.5mm
Light Center Length: 27mm
Typical Use: Acuity Eye Chart Projection
Country of Origin: Japan
Technology: Halogen

Alternate Part Number: Eiko 15015, JC12V30W-G6.35, 12V30W, Ushio 8000204, SM-42440-20030, Topcon 42440-20030, Eiko 41334

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
