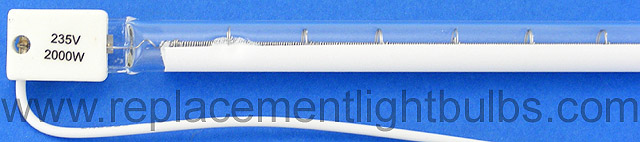

QH2MT3/RFL/SK15-235V 2000W Reflector Quartz Zone Heater Lamp
50 In Stock
Maximum Overall Length 355.6mm with 228mm Leads
Victory $20.93 Each
Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.
Wattage: 2000W, 2000 Watt, Watts
Voltage: 235V to 240V, 240 Volt, Volts
Base: SK15 Flexi Ceramic Base with 9" 17AWG Insulated Wire Leads with 8mm Crimp Terminals
Glass: T3 Clear with White Reflector, 10mm Diameter
Maximum Overall Length: MOL 14", 355.6mm
Color Temperature: 1800°K, 1800K
Burn Position: Horizontal
Average Rated Life: 5000 Hours
Filament: CC-8
Infrared Quartz Heat Lamp
Infra-Red Zone Heater
A = 355.6±2mm
B = 313mm Nominal
C = 228±5mm
E = 15.1mm
F = 10.5mm
G = 286±5mm
H = 5mm Maximum
Typical Use: Plastic Bottle Manufacturing, PET, Blow Moulding
Alternate Part Number: QH2000W-235V-SK15, Victory 54242055, IFR, Dr Fischer Philips 14136Z/98, JHC 235V 2000W 280 BH2, Sidel PET Blow Moulding, 13213Z/98F
Seidel Blowing Machine
Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
