QRG-22 G22 Medium Bi-Post Lamp Socket
qrg-22G22
Medium Bi-PostSocket

Buhl $28.80 Each

Sockets ordered will be shipped the next day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our online order form, secure shopping cart below or call 800-692-3051.


Click below to order using our secure shopping cart.

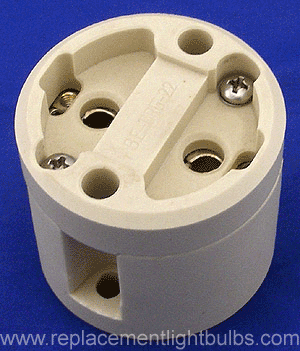

BE QRG-22 Lamp Socket


Base Type:  G22 Medium Bi-Post
Maximum Voltage: 1000V
Maximum Amperage: 20A, 20 A
Height: 1.713"
Diameter: 1.95"
Pulse Rated: 35kV

Buhl Electric Brand

Pulse Rated Metal Halide Lampholder for Hot-Restrike Metal Halide Lamps.
Lamp Socket for all G22 based lamps including: EGN, EGR, EGT, CSR575/SE, HMI-575W/SE, MSR-1200, MSR-1200/2, MSR-575/HR, MSR-700/2

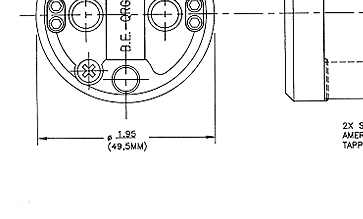

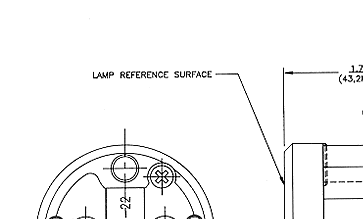

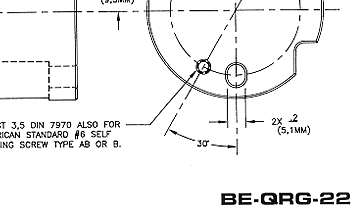

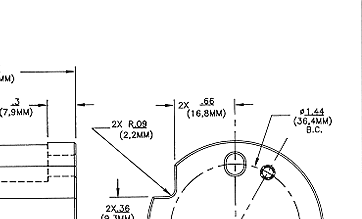

beqrg22qrg-22 specifications
G22 Lamp Socket1000V


Alternate Part Numbers: B.E.-QRG-22,
