TP22 G9.5 Lamp Socket

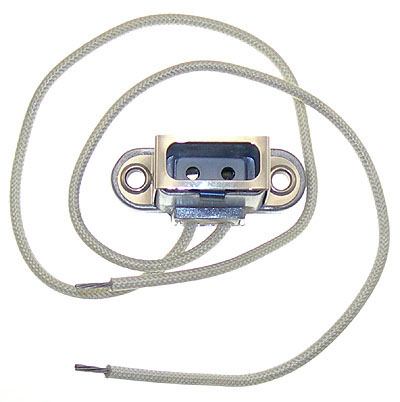

Photo is of 12" leads, actual socket shipped has 36" leads.

GTE $11.48 Each
Mitronix $7.13 Each

Sockets ordered will be shipped the next day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart below or call 800-692-3051. Click to go to our Home Page, View Cart and to find Shipping Information.



Click below to order using our secure shopping cart.

Sylvania GTE TP22 Lamp Socket

Mitronix GP22 Lamp Socket


G9.5, G9,5 Lamp Socket with 36 Inch Leads

Lamp Socket for FEL, FEP, BWM, BWN, EHB, EHC, EHD, EHF, EHG, FLK, GLA, GLC, HX400, HX600, HX601, HX602, HX603 and other lamps with G9.5 Base with a maximum voltage of 250V and a maximum wattage of 1000W.

2-pin medium base with .125" pin diameter and .375" center of pin to center of pin.

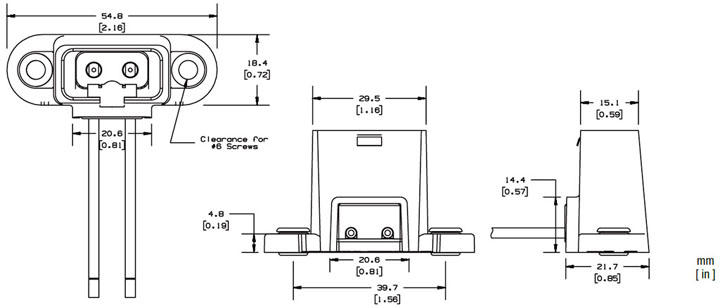

TP22 GP22 Graphic

Alternate Part Numbers: SOC/G9.5/TP22/12, CLCM for ETC, F592890 AWG16 SF2, F586560 AWG16 UL1199, F593210 AWG18 UL1199, F510830, 69621-0

Body Material: Steatite / Die Cast Aluminum
Contact Material: Silver Plated Brass
Wire Leads: AWG 18 Teflon Standard, 16 or 14 AWG available, 600V, 200°C
Maximum Operating Temperature: 200°C
Maximum Voltage: 250 Volts
Maximum Wattage: 1000 Watts
UL recognized E31557
CSA approved LR20904
