Sylvania TP22H G9.5 HPL Type Lamp Socket
TP22H G9.5 HPL Type Lamp Socket

291 Remaining In Stock

Osram Sylvania $17.16 Each

Sockets ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

G9.5, G9,5 Lamp Socket with 44 Inch Leads

Lamp Socket for HPL375/115/X, HPL550/C-77V, HPL575/115V/X, HPL750/115V/X and other lamps with G9.5 Base with a maximum voltage of 250V and a maximum wattage of 1000W.

2-pin medium base with .125" pin diameter and .375" center of pin to center of pin.

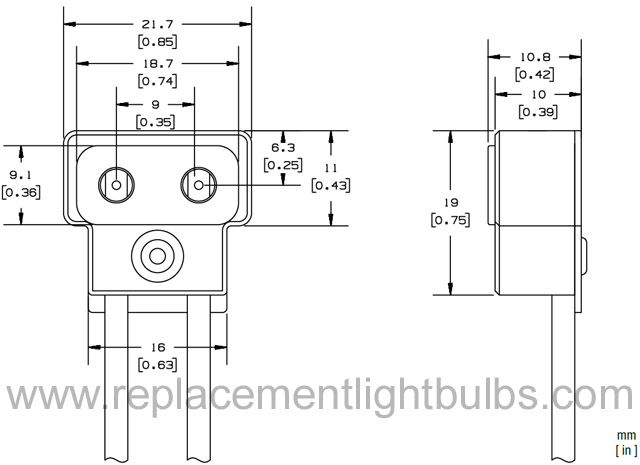

TP22H G9.5 HPL Style Socket Graphic

Alternate Part Numbers: F511950, 69005, UL5359, 69818, TP22H44IN16GAUL5359, TP22H 44IN/16GA/UL5359, 69031, 69031-0, 69818

Body Material: Ceramic Steatite
Contact Material: Silver Plated Nickel with High Temperature Backer Spring
Wire Leads: AWG 16, AWG16, 600V, 250°C, White, UL 5359
Maximum Operating Temperature: 300°C
Maximum Voltage: 250 Volts
Maximum Wattage: 1000 Watts
UL Recognized E31557
CSA Certified LR20904
ROHS Compliant
