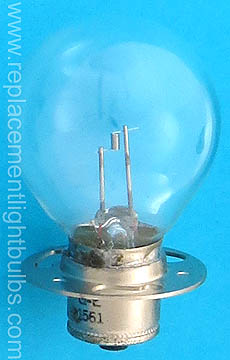

1561 6.3V 4A 25W Instrument Lamp Replacement Light Bulb
1561 6.3V 4A 25W Instrument Lamp Replacement Light Bulb

457 In Stock

$1.93 Each

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 25.2W
Voltage: 6.3V
Amperage: 4A
Glass: S-11 Clear
Base: P30s, P15s30, Single Contact Prefocus Flanged, 15mm Diameter with 30mm Diameter Ring
Filament: C-8Z, C8Z
Maximum Overall Length: 2.38"
Maximum Overall Diameter: 1.375"
Light Center Length: .88"
Burn Position: Universal
Lumens: 302
Candlepower: 24CP, 24 MSCP
Average Rated Life: 1500 Hours
Special Note: Do not touch glass with fingers or clean if handled before use.

Alternate Part Numbers: GE 27431, Colorimeter, Instrument, GE1561, SM-1561, 1561-I, SCPF, CEC1561, GE 27431, KM1561, 6.3V4A, Photographic Densitometer, 6.3-25.2-64, Ushio 8000072, MacBeth Densitometers TD-100, TD-205, TD100, TD205, Colorimeter General Electric Medical Radiology CT PET MRI X-Ray Ultrasound, Patient Vital Signs Monitor, SC PF. B

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
