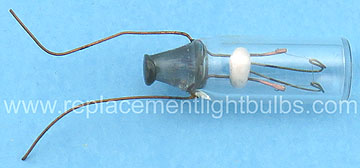

GE 2143D 2143 10V Wire Leads Light Bulb
GE 2143D 2143 10V Wire Leads Light Bulb

199 Remaining In Stock

$3.00 Each

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed below, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Voltage: 10V
Amperage: .015-.020A
Wattage: .15-.2W
Glass: T-2 Stovepipe Clear
Base: .75" Wire Terminal Leads
Filament: C-2F
Maximum Overall Length: .825" or 21mm
Maximum Overall Diameter: .25" or 6.35mm
Typical Use: Indicator, Control Panel Lamps

Alternate Part Numbers: GE 2143D

Special Note: This lamp is known as a butt seal wire terminal lamp. A butt seal wire terminal is considered a sub-assembly which requires a base to cover and protect the wire terminals, glass to metal seals, and glass tip. Without this base there is no performance guarantee for this lamp type. To use this lamp and minimize the risk of damage please do the following:

1. Do not put strain on the wire terminals or bend them sharply where they emerge from the glass since these can cause breakage of the wire terminals or rupture of the glass-metal seals. Any bending of the wire terminals should not be gloser to the glass than 1/8".

2. Avoid soldering within 1/8" of the glass seal since the heat of soldering could cause a leak in the seal.

3. Take care, in mounting hte lamp in equipment, that the glass tip is protected against breakage.

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
