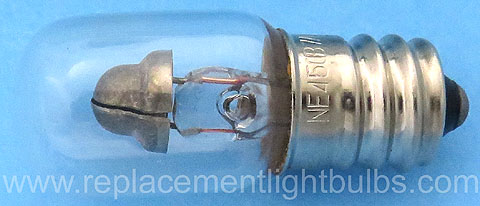

B7A NE-45 E12 30K Internal Resistance Neon Light Bulb Replacement Lamp
B7A NE45 Neon Light Bulb Replacement Lamp

7,109 In Stock

$1.00 Each





Lot of 10 $5.90 Each





Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and $0.00.

Neon Indicator
Circuit Voltage: 105V to 125V
Maximum Initial Breakdown Voltage: 65VAC, 90VDC
Amperage: 2mA, .002A
Wattage: .25W
Resistance: 30K Internal Resistor
Base: E12 Candelabra Screw
Glass: T4.5
Color: Amber
Average Rated Life: 7,500 Hours
Maximum Overall Length: MOL 1.53125" or 38.9mm
Bulb Diameter: .56" or 14.3mm

Alternate Part Numbers: Eiko 40020, CEC B7A-P, GE 31675, Neon Glow Lamp, NE45, NE45B7A, Neon Glow Arc Lamp, 110-125V, 1/4 Watt, T-4.5, T-4 1/2, IP. No. 131290, 70-6 71-2 T14 (metric), NSN 6240001791814, 6240-00-179-1814, DLA400-90-M-7938, 2mA, Lamp Glow


Older glass design with bell design.

Franz Electric Metronome LM-FB-3

Hickok Tube Tester

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
