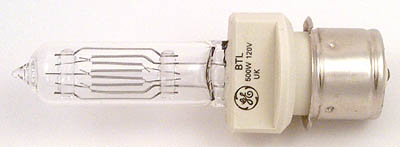

BTL Q500T6/CL 500W 120V Light Bulb Replacement Lamp
BTL Q500T6/CL 500W 120V Light Bulb Replacement Lamp

Osram/Sylvania $20.24 Each - 18 In Stock





Donar $7.14 Each - 1,216 Remaining In Stock





Philips $19.26 Each - 7 Remaining In Stock





GE $18.43 Each - 95 Remaining In Stock





Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and $0.00.

Wattage: 500W, 500 Watt, 500 Watts
Voltage: 120V, 120 Volt, 120 Volts
Average Rated Life: GE and Donar 500 Hours, Osram 750 Hours
Initial Lumens: 11,000
Filament: C13, C-13, C13D, C-13D
Quartzline, Halogen
Base: Medium Prefocus P28S, P28S/24
Color Temperature: GE and Donar 3000°K, 3000K, Osram 3050K
CRI: 100
Glass: T6, T-6, Clear, Quartz
Gas: Halogen
Maximum Overall Length: MOL 5.75"/134mm
Light Center Length: LCL 2.18"
Burn Position: GE and Donar Universal, Any, Sylvania S90

Alternate Part Numbers: GE 11966, 120-500-63TL, 23160, 01399, Ushio 1000083, Q500T6/CL-120V, Q500T6/CL/P, UPC 043168119665, NSN GNSN 6240004284027, Sylvania NAED 54685, Osram 750 Hours and 3050°K, Philips 6800C T17 T24 31891-5 318915 500 Hours 3050K, JCS120V-500WB, Colortran 176-167, Eiko 00390, Bulbrite 762010, 64682, 50946-3, Thorn HX47 HX17, Q500/5CL/2 3/16P, JCS120V500WBP28, LIF Code T24, LF601, JCS120V-500WBP28, 54883-0, Q500/T6/CL/P

Photometrics-18° Spot Positon

Distance in Feet 10'
 15'
 20'
 25'
Spread 3'
 5'
 7'
 8.5'
Footcandles 675
 301
 170
 110

Photometrics-60° Flood Position

Distance in Feet 10'
 15'
 20'
 25'
Spread 12'
 18'
 25'
 30'
Footcandles 103
 46
 25
 16


Altman

1KAF-MPF, 6" Die Cast Stage Fresnel
65, 65Q, 165, 165Q, 6" Fresnel

Century

3312, 3420
6" Model 500 Fresnels
Century 1481 Leko Fresnel Spotlight

Colortran

6" 1K Fresnels, 214-012, 213-202, 213-512
6" Starlette 1K Fresnels

Electronic Theater Controls

Source Four Ellipsoidal Lighting Instrument

L&E

6" Fresnel
#60-10, 60-10

Nova Systems Inc., NSI Incorporation, Wilsonville, OR

NSI 4600

Strand

6" Fresnelite
3380, 12081

Times Square Lighting

C6 500 Watt Fresnel
C6W

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
