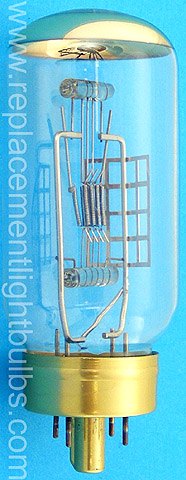

DGF 500W 120V Tru-Focus Slide Projector Lamp
*Discontinued - 143 Remaining In Stock
Lamps ordered will generally be shipped the next business day by USPS Priority
UPS, check here for Shipping Information. Large orders may qualify for a discount and may not
for next day shipment. If you do not know what lamp you require or for
lamps not listed, email
your request or call 336-882-2854. To order, please use our secure
shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.
Wattage: 500W, 500 Watt, Watts
Base: G17q, 4-Pin, Keyed Center Post
Filament: C13D, C-13D, Collector Screen, Collection Grid
Glass: T12, T-12, T12H, Tubular 1.5" in Diameter, Clear with Opaque Top, Black, Blue, Silver, Gold
Average Life: 25 Hours
Maximum Overall Length: MOL 4"
Light Center Length: LCL 1.7"
Burn Position: Horizontal with Beam Down and Screen on Top
Color Temperature: 3200°K, 3200K
Light Center Length: 1.75"
Initial Lumens: 12000
Typical Use: Slide Projectors, Movie Projector, Still Projection
For less light
Possible Substitute DEK/DFW/DHN
While seemingly identical to the DGE the DGF is not interchangeable with the DGE.
Alternate Part Numbers: Sylvania 73468, Wabash, Tru-Focus, GE 73468, GE 29730
Ansco Regency Regent
RCA Corp. TP66, TP-66
Sears 9875, 9877, 9878
Cross reference information is designed to help you find the
correct lamp for your application. We do not verify the accuracy of
You are responsible for ordering the correct lamp and we make
every attempt to help you in that process. We recommend that you
the information with the equipment manufacturer before ordering.
