G4T5 G4W F4T5/GL 4W Germicidal UV-C UVC Light Bulb
G4T5 G4W F4T5/GL 4W Germicidal UV-C UVC Light Bulb

20,484 Remaining In Stock

$3.50 Each





Lot of 3 $9.90





Lot of 10 $30.00





For special ozone producing G4T5 go here.

Germicidal Lamp Handling Warning

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and $0.00.

Wattage: 4W, 4 Watt Watts
Glass: T-5, T5 Clear
Base: G5 BiPin
UV Emission: 254nm
Maximum Overall Length Including Pins: 150.1mm
Maximum Overall Length Excluding Pins: 135.9mm
Typical Actual Length Including Pins: 5-7/8" ±1/16" or 148mm ±2mm
8.3uW/cm2 at 1M
Average Rated Life: 6,000 Hours, Lamp will burn longer if in continuous operation but should be changed after 6,000 hours of use.

FS-5 Starter
If you are experiencing slow start times or the new lamp does not work you may need a new starter.
You can purchase the starter for this lamp at FS-5 Fluorescent Starter with Condenser.
Some units use the FS-1P Starter with Condenser.

Lamp emits UV rays of 254nm and can kill most germs and microorganisms. Emits no ozone.

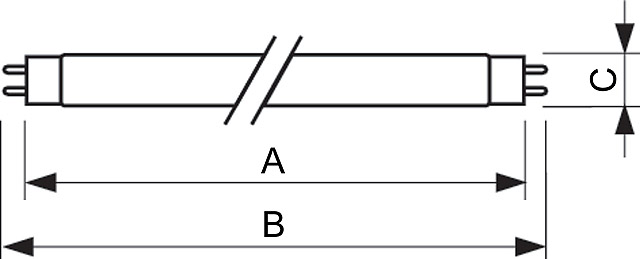

T5 Fluorescent Graphic

A=131.9mm to 135.9mm
B=146.1 to 150.1mm
C=16mm Max

Alternate Part Numbers: G4T5/G, Ultraviolet Germicidal, AU/LG04T5, 363713, TUV4T5, FG4T5, Sterilamp®, GE 15872, Ushio 3000013, Sankyo Denki, Galaxy GXG4T5 22116, LUMINCO LMG4T5DC, Sunlite, 10-046, 990-1040-01, UVP 34000301, 700170-STG, F 4W GL, F4WGL, S4WGL, EcoQuest P/N US70059, 70059, UVC, G4T5/G, 2W4S15W-2135, TUV 4W/G4T5, WHG4T54W, 14-00013-002, Made in Hungary, 20713497 G, WHG4T5 4W, GC095, B139, 14-0013-002, G C095, 14-00013-002, G C005, GC054, 448, USHIO, USH10, USHI0, ZW4S15W-Z135, 8N05, 8NO5, Osram Sylvania Puritec HNS 23397, G4T5/OF, G4T5/0F, Philips 363713, 36371-3, 9280 001 04013, G4T5-K, CG053

Germicidal lamps are clear with special UV transmitting glass. For use in sterilizers and air and water purifiers. This is an ultraviolet C (253.7 nm wavelength) bulb for use in sterilization, water and air purification and surface disinfection. Used in the Forming and Disinfection of Contact Lenses. Used in UV Sterilizers for Fish Aquariums and Ponds. Fixed wavelength spectrophotometer detector. Germicidal lamps allow 253.7nm UV-C radiation from the mercury discharge to pass through the glass thus penetrating and inactivating the DNA of most micro-organisms.

Warning: Avoid direct exposure of eyes and skin under germicidal lamps. To prevent possible serious injury, eyes and skin should not be exposed to direct or reflected ultraviolet power emitted by this lamp. This lamp is in Risk Group 3 per ANSI/IESNA RP-27.3-96. Adequate protection should be provided by clothing, gloves, opaque materials, and ordinary window glass. Although this lamp will operate in standard fluorescent fixtures, it should not be used for general lighting applications.

Go to our Germicidal Safety Sheet for more lamp handling details.
Note: This lamp contains Mercury. Manage in accord with disposal laws. See www.lamprecycle.org.

Trident, Vectron, Tetra, Hozelock and Cipro
Jaycar
Jameco
Premier T-12

Aquanetics

Q4SPT
Q14IL

AquaStar™

UV Portable Water Purifier
AquaStar Plus!
Ultraviolet (UV-C) Portable Water Purifier Filter

DATARASE II ACT EPROM eraser

Better Living

CH Lighting

F4T5/GL

Dry and Store

Global Hearing Aid Dehumidifier
Professional Conditioning System
TRG-AA
Drystore Global Hearing Aid Dryer-We have had two customers who had fit issues. The length of the lamp excluding the pins should not exceed 135mm and is usually around 134mm. These two customers had their sockets set such that the lamps needed to be 133mm or less. This happens when the manufacturer sets the socket positions around the length of a short lamp rather than the specifications for the lamp type.

Ecoquest

Fresh Air
#us70059 14-00013-002 B138

Edenpure

Table Top Unit
EdenPURE Air Clean
Eden PURE WGEP1000 Table Top Unit, WGEP-1000
Eden Pure G-7, G7 Air Filtration System

Enerzen

Air Purifier
ZW4S15W-Z135

Eprom Eraser

ME5E
ME5
Model LER121A, LER-121A

Forensic UV Lights

CUV100TS
772SW
772ADC
774SW
782UV
785UV
782ADC

Fresh Air

1.5

GreenAir

Air Purifier
Classic

Hawaiian Marine Angstrom

2537 UV
Models AN-4S, AN-4SA

Hybec

Kandolite

G4T5

LabAlliance Lab Alliance

HPLC Fixed Wavelength Detector

Omnipure Pacific UV Systems & Accessories

OPP-UV4W 1/2 GPM System

PI-KEM

KW-4AC

Puratron

Purebrush

Anti-bacterial toothbrush purifier/sanitizer, Antibacterial UV
Purebrush Ultra Violet Light Replacement Bulbs

Raytech

SW-4, LS-7, PP-S, PP-FS and M-FS
LS-2 UV Instrument

Sankyo Denki

Esencia Bio ESA-400 Toothbrush Sterilizer

Spectroline

PE-24T
PT-240T
EF-140
EF-140C
ENF-240C

Spectronics

BLE-2537S

Therapure

Thera Pure, PN TPG10004W, TPG1000-4W, TPG100

Turner

Model 10A Fluorometer

Universal

Hot Towel Warmer Cabby, Cabi
Hotcabi U.V. Sterilizer
Pro Hotcab

UVP

UVS-11, M-14, UVSL-25, UVG-11, UVGL-25 and UVG-4

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
