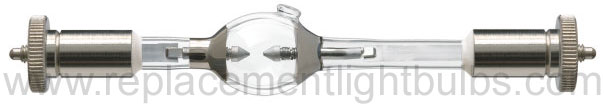

HBO 200W/2 L1 200W Double Ended Mercury Short Arc Light Bulb
7 Remaining In Stock
Osram $200.00 Each
Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.
Wattage: 200W
Voltage: DC Operation 47V to 65V, AC Operation 57V to 65V
Ignition Voltage: 4.5kV Cold, 25kV Hot
Amperage: DC Operation 3.1A to 4.2A, AC Operation 3.6A
Base: SFc10-4 Both Anode and Cathode
Life: 400 Hours
Lumens: 10,000 at 65V AC
Rated Lumens: 9500
Average Luminance: 40000 cd/cm2
Glass Type: KO113
Glass Diameter: 17mm
Light Center Length: LCL 40mm
Coating: Clear
Maximum Overall Length: 128mm
Burn Position: Vertical Base Down, S45 Base Down ±45°
Typical Use: Microscope, Semiconductor, Microscopy,
Laboratory & Analysis,
UV Light Curing,
Fiber Illumination,
Microscopy,
Solar Simulation
Alternate Part Numbers: Osram Sylvania 69198, 69198-1, HBO 200 W/2 L1, HBO200W/2L1, 4050300508153, 4050300508160, QL-0203/05 SFC10-4, Ushio USH-200DP 5000276, USH-205DP 5000277, A 052 515 18 04
Jena, Narva
688.09Flouval 2
Jenalumar FL
Leitz
050-620LH250DC
Nikon
78580Apophot
EPI Fluorescence Fluophot
V20A
V20A Mercury
Olympus
8B190A-FL
A-RFL
A1-FLM
A1FLM
AFL/ARFL
AH-2-RFL
AH2
AH2RFL
Salvin
Moon Beam L1 Entertainment LightingZeiss
391603910050
Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
