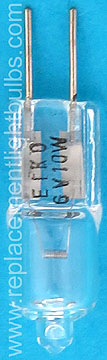

JCD6V-10WH20 6V 10W Light Bulb Replacement Lamp
Discontinued - No Remaining Stock - Possible Substitutes JC6V10WG4/AX, 6605, 5972, ESA
Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.
Voltage: 6V, 6 Volt, 6 Volts
Wattage: 10W, 10 Watt, 10 Watts
Average Rated Life: 2000 Hours
Base: G4 2-Pin
Lumens: 150
Color Temperature: 2850°K
Tungsten-Halogen
Amperage: 1.67A
Bulb: T-2.75, T2.75, 8mm Maximum Diameter, Clear
Filament: C-6
Maximum Overall Length: 31mm or 1.22"
Maxium Overall Diameter: 9mm or .36"
Light Center Length: 20mm or .79"
Base: G4; also known as: Sub-Miniature 2-Pins; round .7mm; 4mm apart
Cross References: JCD6V10WH20, JC6V10W-G4, Q10CL-6V, Q10/CL-6V, Eiko 15001, 64410, JCV10WCG1, Ushio 1000856, JC6V-10W/G4
Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
