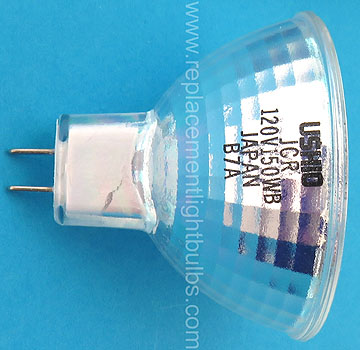

JCR 120V150WB 120V 150W MR16 Light Bulb Replacement Lamp
JCR120V150WB 120V 150W MR16 Light Bulb Replacement Lamp

Discontinued - No Remaining Stock - Possible Substitutes EZK or ESD

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 150W
Voltage: 120V
Glass: MR16, Quartz
Reflector: Faceted Dichroic Mirror
Base: 2-Pin GY5.3 Flat Pins
Filament: CC-8
Beam Spread: 26° Narrow Flood
Average Rated Life: 100 Hours
Burn Position: Base Down ±90°, Base Down to Horizontal
Maximum Overall Diameter 50.8mm or 2"
Maximum Overall Length: 44.5mm or 1.75"
Color Temperature: 3050K, 3050°K
Color Rendering Index: 100, CRI 100
Typical Working Distance: 36mm
Typical Use: Fiber Optic Illumination
Special Notes: Dichroic Reflector, Dimmable

Alternate Part numbers: JCR 120V150WB, JCR120V-150W/B, Ushio 1000940, Stippled Reflector, JCR120V-150WB, FP, JCR120V150WB, 120-150-33BR, JDR 120V150WB, 048777161678

Noritsu

3011

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
