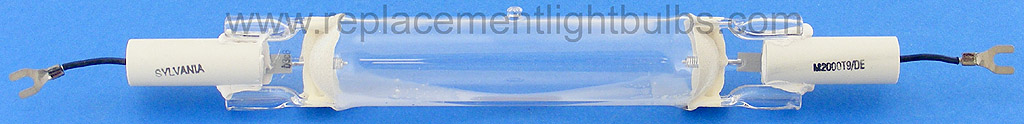

Sylvania M2000T9/DE 66631 2000W Lamp

Discontinued with No Remaining Stock and No Substitute Available

Nominal Wattage: 2000W, 2000 Watts
Nominal Voltage: 250V-Ballast Driven
Ignition Voltage: 4-5kV
Lamp Current: 8.5A
Base: Ceramic #8-10 Spade
Glass: T9, T-9, T29, T-29mm
Color Rendering Index: CRI 65, RA=65+
Color Temperature:: 4200K
Ballast Required: M134/F Special Control
Initial Lumens: 180,000
Mean Lumens: 153,000
Maximum Bulb Diameter: 1.14" or 29mm
Maximum Overall Length: MOL 10" or 254mm
Arc Length: 4.25" or 108mm
Light Center Length: 5" or 127mm
Average Rated Life: 3000 Hours
Burn Position: Horizontal ±4° of Horizontal
Warm Up Time: 2-4 Minutes
Hot Restrike Time: 5-10 Minutes
Maximum Seal Temperature: 350°C
Maximum Base Temperature: 450°C
Maximum Bulb Temperature: 950°C
Technology: HID High Intensity Discharge, MH Metal Halide

Use in equipment where gasket material is protected from all lamp radiation.

Enclosed luminaire with UV filter and lens interlock required. WARNING: This lamp emits ultraviolet radiation which can cause serious skin burn and eye inflammation. Additionally, this lamp operates under high pressure at very high temperatures. Should the lamp break there can exist a danger of personal injury and/or fire from the broken lamp particles being discharged. This lamp should only be used in fully enclosed luminaire with ultraviolet (UV) filter tempered glass lens capable of containing any particles discharges by breakage. Do not use this lamp if the filter lens is damaged or missing. This lamp should only be used in luminaires equiped with safety interlock lens switches. See lamp warning.

Alternate Part Numbers: Sylvania 66631, Osram 93-M2000T9/DE-OS, 04-D1, Metalarc, Double Ended, M2000T9DE, LEDVance, BriteLine, 66631-S, UPC 046135666315, SY66631, 66631-SYL, 66631-1, GE MQI/2000/T9/40, U134, MQI2000T9/40
