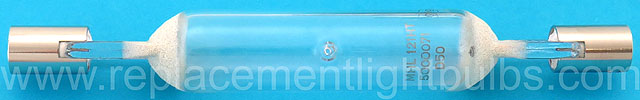

Ushio MHL-121HT 5000071 3000W High Intensity Discharge Light Bulb Replacement Lamp
Ushio MHL-121HT 5000071 3000W Metal Halide Light Bulb Replacement Lamp

9 In Stock - 40 On Order

Ushio $155.76 Each

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 3000W
Voltage: 180V
Amperage: 21.7A
Base: M/14.3 Metal Contact 14.3mm Base
Arc Length: 86mm
Maximum Overall Length: 7.13" or 181mm
Glass Diameter: 1" or 25mm
Light Center Length: 3.39" or 86mm
Lighted Length: 3.39" or 86mm
Average Rated Life: 500 Hours
Burn Position: H10, Horizontal ±10°
High Intensity Discharge, Metal Halide, Tubular
Spectral Range: 400-450nm, UV-A Output
Process: Diazo
Typical Use: Black Light, Graphic Arts, UV Curing and Special Effects

Operate only in fixtures with a protective shield and UV protective housing.
Ballast required, do not wire directly to line voltage.

Alternate Part Numbers: Ushio 5000071, Nuarc FT26V3UP, KM5, HT121, FT32V3UP, FT32V3UPNS, FT40V3UP, FT40V3UPNS, Hanovia HF202A12, Metal Diazo Process, HF202B12, 048777265482, Graphic Arts, MHL121HT, Double Ended Lamp with Metal Ends, Kuhnast JGMH3090-0, JGMH3090-8, Replaces MHL-5KM 5000130, 3K, D50, 048777265482

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
