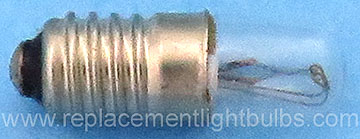

ML-335LSV 335LSV 28V .06A Midget Screw Light Bulb Replacement Lamp
93 Remaining In Stock
$2.00 Each
Recommended Replacement 335
Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.
Voltage: 28V, 28 Volt Volts
Wattage: 1W, 1.12 Watt
Amperage: .06A, 60mA
Filament: C-2F
Maximum Overall Length: .72" or 18.3mm
Maximum Overall Diameter: .23" or 5.9mm
Light Center Length: .52" or 13.21mm
Average Rated Life: 25,000 Hours
MSCP: .34CP
Lumens: 4.27
Bulb: T-1 3/4, T1.75
Base: Midget Screw E5
Typical Use: Aircraft, Airplane, Indicator, Elevator, Equipment
This lamp and the 335 are the same voltage, glass, base and brightness. The 335 draws 40mA and has a 4,000 average rated life, the 335LSV draws 60mA and has a 25,000 average rated life.
Alternate Part Numbers: ML-0335LSV, 6240-00-472-2299, 335LSV, Lockheed Martin 2899317-00, Northrop Grumman L808BG-2, CM335SLV, Raytheon 697794-01, ML335SLV
Mouser or Digikey MCI UV Meter Lights
Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
