Sylvania TP22H HPL Source Four Fixtures 65 Inch G9.5 250V 1000W Type Lamp Socket

Discontinued - No Remaining Stock

Possible Substitute TP22H

Sockets ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

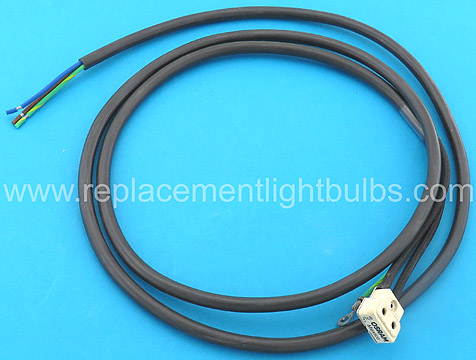

G9.5, G9,5 Lamp Socket with 65 Inch 16AWG Leads

Lamp Socket for HPL375/115/X, HPL550/C-77V, HPL575/115V/X, HPL750/115V/X and other lamps with G9.5 Base with a maximum voltage of 250V and a maximum wattage of 1000W.

2-pin medium base with .125" pin diameter and .375" center of pin to center of pin.

Alternate Part Numbers: Osram Sylvania 69017, HPL Lamps in ETC Source Four Fixtures, 65 Inch 3 Wire Bundle, Ceramic Steatite Body, Silver Plated Nickel Contacts, LR20904, ROHS Compliant, PTFE AWG16 Jacketed Wires, UL E31557, TP22H-CE/165CM/16GA/UL1659

Body Material: Ceramic Steatite
Contact Material: Silver Plated Nickel with High Temperature Backer Spring
Wire Leads: AWG 16, AWG16, 600V, 250°C, White, UL 1659
Maximum Operating Temperature: 300°C
Maximum Voltage: 250 Volts
Maximum Wattage: 1000 Watts
UL Recognized E31557
CSA Certified LR20904
ROHS Compliant
