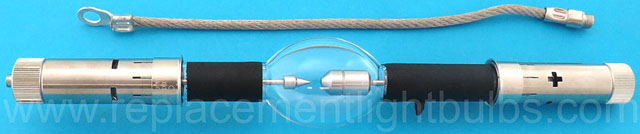

Osram 60011 XBO 2500W/HTT Cinema Xenon Light Bulb Replacement Lamp
3 Remaining In Stock
$500.00 Each
Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.
Wattage: 2000 Watts
Operating Voltage: 24V
Rated Lamp Current: 80A
Current Control Range: 50-85A
Ignition Voltage: 33kV
Minimum No-Load Voltage: 85/110V
Cooling: Forced Air Required
Maximum Overall Length: 370mm
Light Center Length: 142.5mm
Bulb Diameter: 52mm
Buring Position: Horizontal, S30 Vertical ±30° Anode Up, P30 Horizontal ±30°
Lumens: 80,000
Luminous Area: 1.3mm x 4.8mm
Luminous Intensity: 7500cd
Average Rated Life: 3000 Hours
Cold Arc Gap, Electrode Gap:
5.8mm
Base Anode: SFcX 25-10
Base Cathode: SFcX 25-10
Gas: Carbon
Application: Digital Cinema Projection
Alternate Part Numbers: Osram 60011, Xenon, DC Lamp, Philips LTIX-2000W-HTT, H = Horizontal Burn Position, TT + Threaded on Both Ends, OFR + Ozone Free
Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
