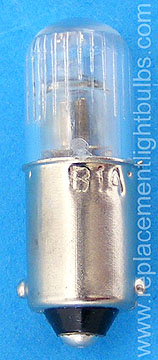

B1A NE51 Neon Glow Light Bulb Replacement Lamp
3,775 Remaining In Stock
68¢ Each
Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.
Neon Indicator
Circuit Voltage: 105V to 125V
AC Breakdown Volts Max; 95V
DC Breakdown Volts Max; 135V
Amperage: 1.2mA, .0012A
Wattage: .07W
Series Resistance: 220,000 Ohm, 220K
Base: BA9s Miniature Bayonet
Glass: T3.25
Average Rated Life: 25,000 Hours
Maximum Overall Length: MOL 1.19" or 30.2mm
Bulb Diameter: .406" or 10.3mm
B1A Replaces NE51 NE-51 Neon Lamp
Alternate Part Numbers: B1AVCH, NE-51, 105V, .3mA, .14W, Neon Indicator, NE51, Neon Glow, BA9s, 105-125V, 1/25W, CMB1A, 00131310, GI-ENG-BIA, 220KW1/4 W, 540KW1/3 W, Average Life 25000, Brighttness Standard, M15098/10-001, NE51, 105-125V, ¼W, .3ma, Neon, 25,000 Hours, NE51H, Sylvania 30751-0, Empire models 108, 208, 398 and 498, Altec Lansing 1594B Power Amplifier, Lightning Protection Corporation 11876-1, Vim Electric Tube Reel TT592, Lightning Protection Systems LPC-20205, Pyrotronics DB-2W, 220K External Resistance Required, 6240-00-223-9100, MIL-L-15098D/10-001, MIL-L-15098/10-001, CM-B1A, VCH-ENG-B1A, SELNE51NEON, PC-48801-1, 6240-99-996-1109, 6240999961109, 51, XI-201, N17-L-76857-4859, Dialco #12B408-111
Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
