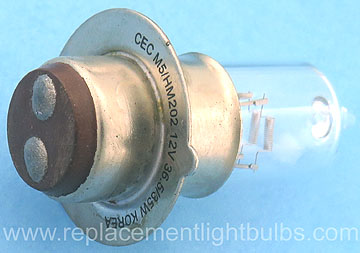

CEC HM202 M5 12V 36.5/35W Light Bulb Replacement Lamp
CEC HM202 M5 12V 36.5/35W Light Bulb Replacement Lamp

93 In Stock

CEC $4.36 Each

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 36.5/35W, 36.5W/35W, 40W Maximum
Voltage: 12V, 12 Volt Volts
Design Test Voltage: 13V
Amperage: 3A/2.92A
Base: Double Contact Flanged PX15d, P15d-25-1
Average Rated Life: 130/130 Hours
Filament: CC-6/CC-6 Dual Filaments
Maximum Overall Length: MOL 2.1" or 53.4mm
Maximum Overall Glass Diameter: MOD .79" or 17mm
Light Center Length: LCL .67" or 20mm
Glass: Clear, T6, T-6
Lumens: 840/805
MSCP 67/64

Specification Sheet

Alternate Part Numbers: 40W/40W, Headlight, Head Light, Headlamp, Head Lamp, 35/35W, 12V35/35W, T15mm Glass, H6M, Eiko 00402, PX15d25-2, Off Road, ATV Type, JAH6M

Typical Application: Scooter Headlight, Motorcycle, ATV, Snowmobile, Moped, Recreational Vehicle Bulb

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
