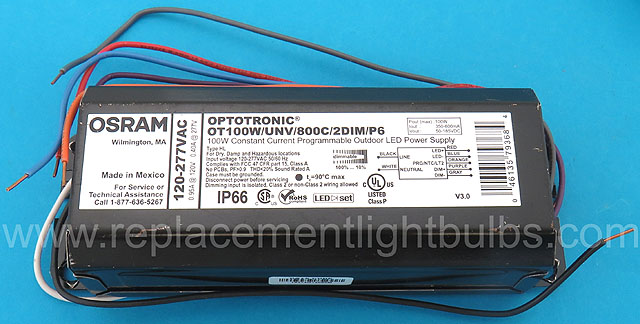

Osram Optronic OT100W/UNV/800C/2DIM/P6 LED Outdoor Dimmable Programmable Power Supply
Osram Optronic OT100W/UNV/800C/2DIM/P6 LED Outdoor Dimmable Programmable Power Supply

Discontinued - No Remaining Stock - No Recommended Replacement

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 100W
Voltage: 120V to 277V AC, 120-277VAC
Amperage: 350-800mA, .95A at 120V, .4A at 277V
50-60Hz
Dimmable 100% to 10%
100W Constant Current Programmable Outdoor LED Power Supply
Approvals: IP66, SA, RoHS Compliant, cULus Listed Class P
Complies with FCC 47 CFR Part 15, Class A
No PCBs, PF>0.9, THD<20% Sound Rated A
Case Must Be Grounded
Dimming Input is Isolated, Class 2 or Non-Class 2 Wiring Allowed
Type HL for Dry, Damp and Hazardous Locations
UL Damp and Wet Rated
UPC 046135793684, Osram 79368
LEDset, AstroDim

Specification Sheet

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
