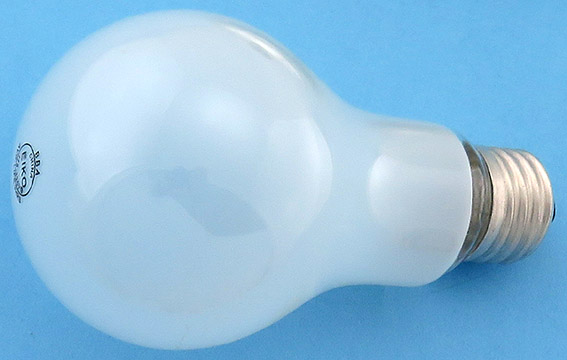

BBA 250W 120V Light Bulb Replacement Lamp
BBA 250W NO. 1

Sylvania $1.82 Each - 12 Remaining In Stock

Eiko $1.73 Each - 9,146 Remaining In Stock

GE $2.50 Each - 25 Remaining In Stock

Mazda $2.00 Each - 4 Remaining In Stock

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Watts: 250W
Volts: 115-120V, 118V
Amperage: 2.12
Average Rated Life: 3 Hours
Base: E26 - Edison Medium Screw, 26mm
Glass: A-21, A21, IF, Inside Frost
Filament: C-9
Lumens: 8700
Bulb: A-21
Color Temperature: 3400°K, 3400K
#1 Photo Flood
Type: A
Burn Position: Universal
Maximum Overall Length: MOL 4.938"/125.4mm
Maximum Overall Diameter: MOD 2.625"/66.6mm
Schedule B Number: 8539.29.4000
Country of Origin: China

Cross-Reference: 00040, 1000026, 11619, 120-250-48, 40563, BBA-1, BBA-118V, BBA-120V, BBA-NO.1, BBA1, BBA118V, P1-1E, PF-207E, PF-207E-PHILIPS, PF207E, PF207E-PHILIPS, PH1, PHILIPS-PF207E,  EKOBBA, 10043168405635, 043168405638, 3M 0050, 3M 78-8032-3344-0, Osram 151, 3M 78-10-0520-0050, lamp, light, bulb, bulbs, lamps, eiko, Photo Enlarger, Graphic Arts, ANSI, Sylvania, Philips, GE 40563

American Photo Products Company SPEED-MASK
Argus Incorporated EFA
Argus Incorporated EF SPEED-PRINTER
Eastman Kodak Company 16-MM  ENLARGER, 16MM  ENLARGER, 4-X-5-B, 4-X-5-C, 4-X-5  ELIPTON-AUTO-FOCUS, 4X5-B, 4X5-C, 4X5B, 4X5C, 4X5 ELIPTON-AUTO-FOCUS, A MINIATURE, A, B  MINIATURE, B, C, ENLARGER
Elwood 5X7 Enlarger
Engineered Products Company H
Graflex Incorporated ENLARG-OR-PRINTER
Graphomat Corporation MULTI-LENS-ENLARGER
Ideal Photo Enlarger Company IDEAL-IDEALEX
Radiographic Viewer, Viewers
Rainbow Vacuum Cleaner Demonstrations (GE brand is generally preferred for this application)
Sandmar T-1218, T1218
Speedball Screen Printing Materials
White Lightning Ultra Series Flash Unit Modeling Light

You can use ordinary household globes for photography. But you should be aware of a few characteristics which you may want to consider.

Color Temperature:

        Standard Domestic Light Bulb (40-60w) 2800K
        Standard Domestic Light Bulb (100-200w) 2900K
        Standard Domestic Light Bulb (500-1000w) 3000K

These bulbs will be significantly "warmer" (orange/red) than tungsten light sources designed for photographic purposes. Remember the color temperature of quartz halogen fixtures is 3200K.

Quality:

Standard household bulbs are not very diffuse. They tend to burn hotter in the center. You may find this undesirable, especially, if the light source is in frame.

Options exist which allow you to use ordinary household fixtures as well as clip lights and special fixtures you can make for your own purposes. Photographic suppliers and expendable supply stores carry several color correct light bulbs which will fit into standard light sockets.

Enlarger Bulbs are widely used in motion picture lighting. They are evenly diffuse across the surface of the bulb, have a proper color temperature of approximately 3200°K and come in different wattages.

        PH/111A = 75w Color 2900°K, 1120 Lumens, 15 Hours
        PH/140 = 75w Color 2900°K, 1150 Lumens, 35 Hours
        PH/211 = 75w Color 3000°K, 1000 Lumens, 65 Hours
        PH/212 = 150w Color 3050°K, 2300 Lumens, 100 Hours
        PH/213 = 250w Color 3400°K, 7000 Lumens, 3 Hours

Photofloods (standard pear shaped) are another option. The most common sizes are: 250w and 500w.

        ECA = 250W Color, White-3200°K, 6500 Lumens, 20 Hours
        BAH = 300W Color, White-3200°K, 9000 Lumens, 20 Hours
        ECT = 500W Color, White-3200°K, 13650 Lumens, 60 Hours

        BBA (No.1) = 250W Color, White-3400°K, 8700 Lumens, 12 Hours
        EBV (No.2) = 500W Color, White-3400°K, 17800 Lumens, 8Hours

        BCA (B-1) = 250W Color, Blue-4800°K, 8912 Lumens, 12 Hours
        EBW (B-2) = 500W Color, Blue-4800°K, 10500 Lumens, 6 Hours

Reflecting Globes (RFLs) (mushroom shaped) are another option:

        DAN R-20 = 200w 3400°K
        BEP R-30 = 300w 3400°K
        EAL R-40= 500w 3300°K Medium Beam
        DXB R-40 = 500W 3300°K Spot Beam
        DXC R-40 = 500W 3300°K Flood Beam

The 82A filter corrects for the BBA photo lamp light when using tungsten film. The 80B filter corrects for the BBA photo lamp light when using daylight film.

To set up your "Light Station" place the screen on top of a piece of black paper and center it 12 inches directly below a 150W clear incandescent bulb or a BBA No.1 Photoflood (preferred) Bulb. Either should be fitted with a foil-type pie tin as a reflector.

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
